Ready to Go Straight Out of the Box

Workers can visualize how to wear the MK III glove without any special training. The wrist and index finger straps are adjustable, so the MK III fits virtually any hand size, eliminating the needs to order different sized gloves or manage multiple gloves.

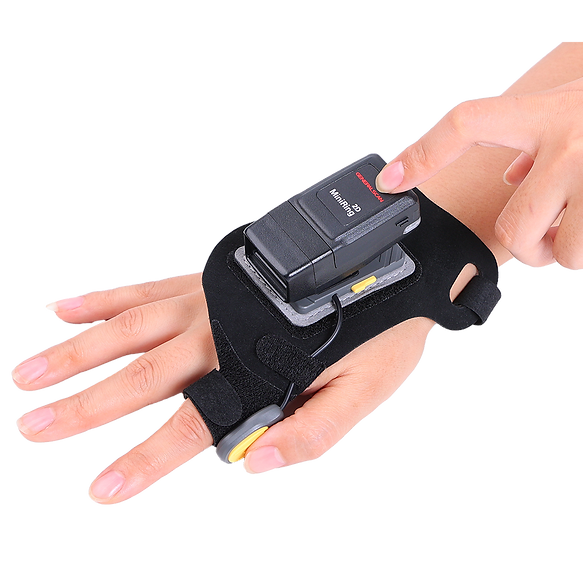

R152X Glove Scanner Mark III Series

Competitive Price Makes the MK III Glove an Affordable Accessory

Mark III glove stands out as the most cost-effective wearable scanner accessory. Its attractive price positions it as a budget-friendly option, ensuring that it is within reach for a wide range of users. This affordability, coupled with its competitive pricing strategy, makes it a compelling choice for those seeking quality without breaking the bank.

Prevent the Spread of Germs with Easily-changed Comfortable Glove

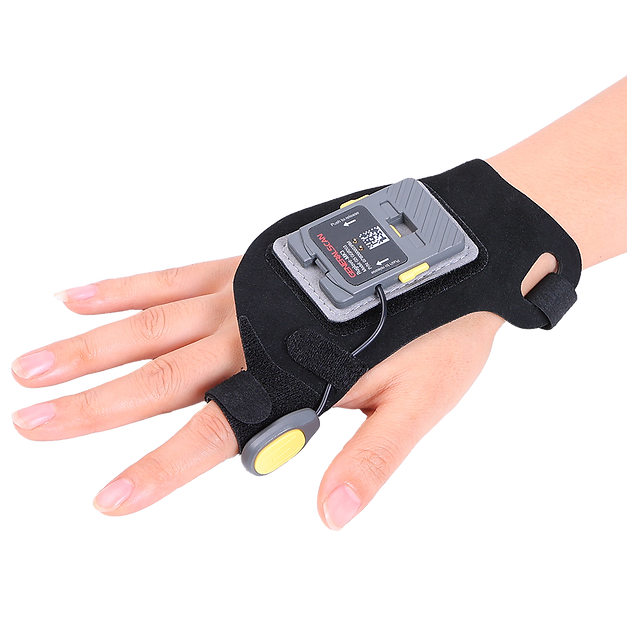

Since the glove is the only part of this wearable device that touches skin, we created the two-piece design that separates the glove from the scanner body, providing the option to give each worker their own glove. Additionally, the material of the glove is soft enough to provide comfortable fit.

Comfortable Wear Guaranteed with Lightweight and Breathable Glove Materials

Utilizing lightweight and breathable materials and an ergonomic design, the MK3 glove guarantees lasting comfort even during extended daily wear, effectively minimizing user fatigue and enhancing overall comfort levels.

Resources


Specifications for R152X Ruglove Scanner Series


R1521 Ruglove Barcode Scanner

R1522 Ruglove Barcode Scanner

Dimension

66.54mm(L)×34.73mm(W)×25.16mm(D)

66.54mm(L)×34.73mm(W)×25.16mm(D)

Weight

25.8g(Scanner body)

28.3g(Scanner body)

Battery Capacity

600mAh

600mAh

Battery Life per Full Charge

18h(scan every 5 seconds)

12.8h(scan every 5 seconds)

Charging

5V 1A

5V 1A

Charging Time

120min.

120min.

Notification

LED, Buzzer, Vibration

LED, Buzzer, Vibration

Glove Type

Ruglove-Lycra: one-size-fits-all(adjustable) Ruglove-Silicone: one-size-fits-all(adjustable)

Ruglove-Lycra: one-size-fits-all(adjustable) Ruglove-Silicone: one-size-fits-all(adjustable)

Scan Engine

GS GEA 101

Honeywell N4680

Skew, Pitch & Roll

Skew tolerance: ±55° from normal

Pitch tolerance: ±55° from normal

Roll tolerance: 360° from normal

Skew tolerance: ±50° from normal

Pitch tolerance: ±50° from normal

Roll tolerance: 360° from normal

Shutter

Global shutter

Global shutter

Field of view

--

Horizontal ±20° Vertical ±15°

Optical Resolution

640x480 pixels

640x480 pixels

Illumination

Cold White LED

White LED

Aiming

Red LED

Red LED

Network Connections

USB, Bluetooth

USB, Bluetooth

USB Interface

USB Type-C

USB Type-C

USB Profiles

USB HID Keyboard, USB VCP (Virtual Serial Port)

USB HID Keyboard, USB VCP (Virtual Serial Port)

Multilingual Keyboards

USB HID mode supports multilingual keyboards

USB HID mode supports multilingual keyboards

Bluetooth Profiles

HID Keyboard, SPP, and Bluetooth low energy(BLE)

HID Keyboard, SPP, and Bluetooth low energy(BLE)

Bluetooth Range

Communication distance connected to mobile phone >98.43ft./30m(with obstructions)

Communication distance connected to mobile phone >164.04ft./50m(with obstructions)

Symbol Decode Capability

1D: Code 128(ISBT 128, AIM 128, GS1 128), EAN-13, EAN-8, UPC-E, UPC-A, ISBN, ISSN, Code11, Interleaved 2 of 5, Code39, Code93, Code32, Codabar, Matrix 2 of 5, Industrial 25, IATA25, MSI Plessey, GS1 DataBar, Plessey, Febraban 2D: QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec, Maxicode, HanXin Code, Dotcode, Composite

1D: Code39, Code128, Codabar, Code11, UPC/EAN, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Matrix 2 of 5, Korean 3 of 5, GS1 Databar, Code93, MSI, Composite 2D: PDF417, Postal Codes, Micro PDF, Micro PDF417, Code128 Emulation, Aztec, Data Matrix, GS1 Data Matrix, QR Code, GS1 QR, Maxicode, Micro QR, HanXin Code, Grid Matrix, DotCode, OCR

Offline Mode

Support storage of 4388 EAN-13 barcodes

Support storage of 4388 EAN-13 barcodes

Ambient Light Immunity

Max 100000lux(direct sunlight)

Max 100000lux(direct sunlight)

Operating Temperature

-10℃~50℃

-10℃~50℃

Storage Temperature

-10℃~50℃

-10℃~50℃

Humidity

5% - 85% non-condensing

5% - 85% non-condensing

Drop Spec.

Multiple 4.9ft./1.5m drops to concrete

Multiple 4.9ft./1.5m drops to concrete

Tumble Spec.

Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute.

Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute.

Electrostatic Discharge (ESD)

±8kv dc contact discharge ±15kv dc air discharge

±8kv dc contact discharge ±15kv dc air discharge

Certification

CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC

CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC

Software Supported

Generalscan Keyboard Pro, Generalscan SDK Demo, Generalscan OTA Tools, G-Service

Generalscan Keyboard Pro, Generalscan SDK Demo, Generalscan OTA Tools, G-Service

Decode Range

13mil EAN-13           50-325mm

5mil Code39             55-135mm

13mil Code128         50-330mm

15mil QR                  30-190mm

10mil Data Matrix     40-130mm

6.67mil PDF417        50-135mm

5mil Code39              45-180mm

10mil Code39            36-360mm

20mil Code39            71-747mm

5mil Code128            56-158mm

10mil Code128          33-321mm

20mil Code128          53-598mm

100% UPCA              46-390mm

7mil PDF417              55-163mm

10mil PDF417            42-247mm

20mil PDF417            81-490mm

7mil QR                      70-125mm

10mil QR/Data Matrix  40-182mm

20mil QR                     36-367mm
