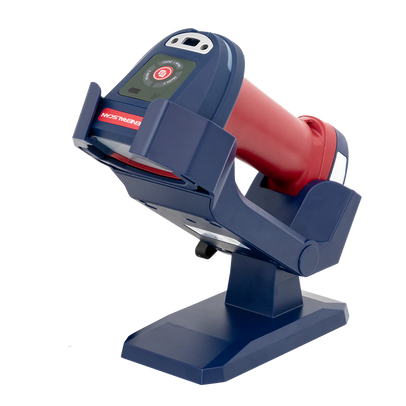

P10 Industrial Handheld Scanner
Wired 2D Industrial Handheld Scanner
Featured with Multiple Illumination Modes to Enhance the Visibility of Barcodes Under Various Conditions
Generalscan P10 series includes bright field, dark field, and diffuse lighting, which are selected by the types of surfaces that the barcode is on. Use high-intensity LED lights that provide bright, consistent lighting to illuminate the barcode, which is essential for capturing high-quality images of the barcodes.
Durable Design and Direct Part Mark (DPM) Capability
Rugged and resistant to dust and water design can endure drops and shocks, making them suitable for using in challenging conditions. DPM barcodes readability, which are often etched or printed directly onto parts or products, a feature not available in all barcode scanners.
Glare Reduction Design and Optimized for Various Surfaces
Designed to minimize glare, which is crucial when scanning barcodes on shiny or reflective surfaces and optimized for reading barcodes on diverse surfaces, including metal, plastic, glass, and paper, which is essential in industrial settings where DPM barcodes are used.
Ease of Use and Cost-Effectiveness
Featuring plug-and-play setup and ergonomic designs, which reduce user fatigue during extended use. Despite Generalscan P10 series advanced capabilities, we often offer good value for money, especially considering the efficiency and durability they bring to industrial operations.
Resources
Specifications for P10 Industrial Handheld Scanner
P10 Industrial Handheld Scanner | |
Dimension | 92mm(L) x 75mm(W) x 188mm(H) |
Weight | 294g（with cord） 220g（w/o cord） |
Power | 5VDC |
Notification | LED, Buzzer, Vibration |
Interface | RJ45 |
Optical Resolution | 1280x1080 pixels |
Shutter Type | Global shutter |
Skew, Pitch & Roll | Skew tolerance: ±60° from normal Pitch tolerance: ±60° from normal Roll tolerance: ±360° from vertical |
Field of View | SR/HD: Horizontal 40° ER: Horizontal 35° |
Aiming | Green LED |
Illumination | White point light, red low angle ring light, red/blue dome light |
Printing Contrast | 15% |
Symbol Decode Capability | 1D: Code128, Code93, Code39, Interleaved 2 of 5, Industrial 2 of 5, IAN/EAN/UPC 2D: QR, DataMatrix, PDF417, Aztec |
Communication Interface | USB COM, USB HID Keyboard, RS232 |
Ambient Light Immunity | Max 100,000 lux (direct sunlight) |
Operating Temperature | 0°C~50°C |
Storage Temperature | -20°C~70°C |
Drop Spec. | 6 sides x 5 times/side = 30 times from 5.9ft.1.8m drops to cement floor |
Sealing | IP65 |
Electrostatic Discharge (ESD) | ±8kv dc contact discharge ±15kv dc air discharge |
Decode Range | GS P10-HD GS P10-SR 3.5mil Code 128 0.0-65.0MM 16.0-101.0MM 5.15mil Code 39 0.0-94.0MM 0.0-195.0MM 10.15mil Code 128 10.0-130.0MM 0.0-249.0MM 20mil Code 128 31.0-206.0MM 21.0-395.0MM 13mil UPC 0.0-145.0MM 10.0-273.0MM DM ECC200 18.0×18.0 4.4mil 2.0×2.0mm 0.0-63.0MM 30.0-85.0MM DM ECC200 18.0×18.0 6.65mil 3.0×3.0mm 0.0-82.0MM 15.0-139.0MM DM ECC200 18.0×18.0 10.13mil 4.0×4.0mm 0.0-108.0MM 16.0-165.0MM |
